[译] 查找、调试并修复 Angular 中的内存泄漏

Today, I’d like to present to you an issue that has been reported several years ago. A user was concerned by a memory leak when using the animation module. Let revisit the investigation that lead to fixing this issue !

Confirming the presence of a memory leak

We could narrow it down to the usage of the :leave animation. See here a minimal reproduction:

@Component({
  selector: '[element]',
  template: 'This element is animated',
  standalone: true,
  animations: [trigger(`fade`, [transition(`:leave`, [])])],
  host: { '[@fade]': '' },
})
export class ElementComponent {}

@Component({
  selector: 'my-app',
  standalone: true,
  imports: [NgIf, ElementComponent],
  template: `
    <button (click)="visible = !visible">Toggle</button>
    <div *ngIf="visible" element></div>
  `,
})
export class AppComponent {
  visible = true;
}

Playing with the toggle button whould trigger the leave animation every time the component was removed.

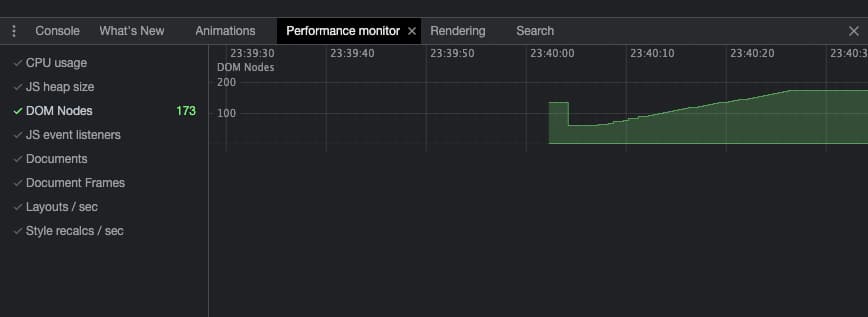

This can be detected with the DOM Nodes counter of the Chromium/Chrome/Edge DevTools Performance Monitor.

In this illustration you can see 2 specific behaviours.

1. After the bootstrap, there is a drop in the DOM Nodes count. This is the Garbage Collector (GC) doing his work: cleaning unreferenced DOM nodes.
2. Next, I played with the toggle button and increased slowly but surely the number of DOM nodes.

To make sure this is not the GC lagging behind, I triggered it manually from the DevTools.

Finding the origin of the leak

Now that we know that we have an issue, where can we start looking for the culprit ?

Edge Chromium (Yes at the time of writing, only Edge provides this feature), has a special tool in the DevTools : Detached Elements.

You can hook it in the bottom panel next to the console to investigate Dom Nodes that have been detached from the DOM. Those detached nodes are still in memory because they are still referenced somewhere in the code. This is a good hint at memory leaks.

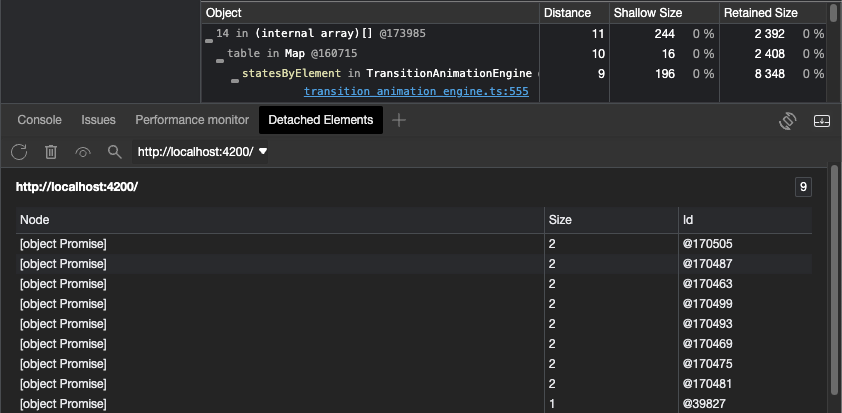

In our case it looks like this :

The list on the bottom of the screenshot represents each detached node still in memory. When clicking the node ID, we get the stacktrace where this object is referenced.

This stacktrace here is quite explicit, our node is staying confortably in a Map named _statesByElement located in the TransitionAnimationEngine class.

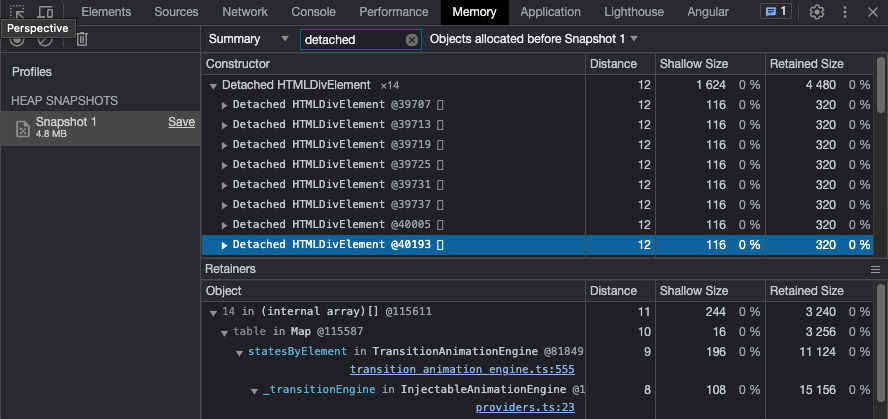

These debugging information are also accessible in Chrome DevTools but less directly. Take a memory heap snapshot of your app, filter to search for “detached” and you’ll find a similar list of detacted element in the snapshot.

📝 Note: To investigate the code source of Angular, you can enable the framework source maps in the angular.json settings like following :

"sourceMap": {
  "scripts": true,
  "vendor": true
},

Without entering too much in the detail of the fix provided in [this PR](https://github.com/angular/angular/pull/50929/files), the solution to our memory leak was to empty the Map at the end of the animation (which wasn't done under certain circumstances).

Without the node being referenced in this Map, the GC can trash it as expected and we no longer have out memory leak !

Et voilà !

I hope have learned something new today, see next time !

Matt.

原文地址: https://riegler.fr/blog/2023-07-20-angular-memory-leak

今天，我想向大家介绍一个几年前就已经报道过的问题。用户在使用动画模块时担心内存泄漏。让我们重新审视导致解决此问题的调查！

确认是否存在内存泄漏

我们可以将范围缩小到 :leave 动画的使用。 请参阅此处的最小复制品：

@Component({
  selector: '[element]',
  template: 'This element is animated',
  standalone: true,
  animations: [trigger(`fade`, [transition(`:leave`, [])])],
  host: { '[@fade]': '' },
})
export class ElementComponent {}

@Component({
  selector: 'my-app',
  standalone: true,
  imports: [NgIf, ElementComponent],
  template: `
    <button (click)="visible = !visible">Toggle</button>
    <div *ngIf="visible" element></div>
  `,
})
export class AppComponent {
  visible = true;
}

每次移除组件时，使用切换按钮都会触发 leave 动画。

这可以通过 Chromium/Chrome/Edge DevTools 性能监视器的 DOM 节点计数器进行检测。

在此图中，您可以看到 2 个特定行为。

1. 引导后，DOM 节点数有所下降。这就是垃圾收集器 (GC) 的工作：清理未引用的 DOM 节点。
2. 接下来，我使用切换按钮缓慢但稳定地增加了 DOM 节点的数量。

为了确保这不是 GC 滞后的情况，我从 DevTools 手动触发了它。

寻找泄漏源头

既然我们知道出现了问题，那么我们可以从哪里开始寻找罪魁祸首呢？

Edge Chromium（是的，在撰写本文时，只有 Edge 提供此功能），在 DevTools 中有一个特殊工具：Detached Elements。

您可以将其挂接到控制台旁边的底部面板中，以调查已从 DOM 分离的 Dom 节点。这些分离的节点仍然在内存中，因为它们仍然在代码中的某处被引用。这是内存泄漏的一个很好的提示。

在我们的例子中，它看起来像这样：

屏幕截图底部的列表代表仍在内存中的每个分离节点。 单击节点 ID 时，我们会获取引用该对象的堆栈跟踪。

这里的堆栈跟踪非常明确，我们的节点舒适地位于 TransitionAnimationEngine 类中名为 _statesByElement 的 Map 中。

这些调试信息也可以在 Chrome DevTools 中访问，但不太直接。拍摄应用程序的内存堆快照，过滤以搜索“detached”，您将在快照中找到类似的 detacted 元素列表。

📝 注意： 要调查 Angular 的代码源，您可以在 angular.json 设置中启用框架源映射，如下所示：

“源地图”：{
“脚本”：真实，
“供应商”：真实
},

Without entering too much in the detail of the fix provided in [this PR](https://github.com/angular/angular/pull/50929/files), the solution to our memory leak was to empty the Map at the end of the animation (which wasn't done under certain circumstances).

Without the node being referenced in this Map, the GC can trash it as expected and we no longer have out memory leak !

Et voilà !

I hope have learned something new today, see next time !

Matt.
